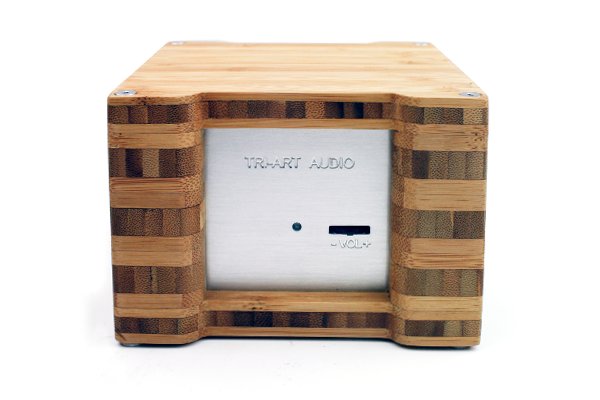

S-series SPIDF DAC

• Digital Volume Control Allows the S-series SPDIF DAC to Function as a Preamp, and Headphone Amp
• High Power Output: 350mW Each Channel
• 4 Digital Filter Settings for System Tuning
• LED Off: Short Delay Sharp Roll Off
• LED Red: Short Delay Slow Roll Off
• LED Blue: Short Roll Off
• LED Purple: Sharp Roll Off
• Features Plug and Play Functionality
• Input: SPDIF (RCA) or USB-B
• Output: Left and Right Female RCA

Specifications

• Savitech SA9037 USB Audio Processor
• AKM AK4490 High Performance DAC
• TI TPA6120A Dual Channel High Power Amplifier
• USB Audio Class 1.0 24 Bit/96KHz
• High Voltage Output at 4.88 Vrms Line Output
• High Power Output at 2 x 350mW Low Impedance Output
• 0.5 dB/Step Digital Attenuation

Included

• USB 2.0 Cable A-Male to B-Male
• 1 Meter RCA Stereo Interconnect
• 5VDC Power Supply
